With the development of automotive safety, there are various types of seat belts. Different vehicles require different safety systems. So you may be confused about choosing the proper seat belt types for your vehicles. To help you make the right decision, this complete guide explains the differences in structure features, application areas, and usage of each type for you to select the suitable ones.
Introduction of Seat Belts
What is a seat belt?
Seat belts are the key parts of the occupant protection system. Most of them are made of retractors, webbings, buckles, and anchor points, while some have no retractors. A seat belt is triggered by sudden deceleration in accidents. They will spread crash forces across stronger body areas of you to reduce injuries.
Why seat belts are important for safety.
Wearing your seat belts properly can save your life during collisions. They distribute impact force across the body and prevent forward movement or ejection from the vehicle. Working with airbags, seat belts protect you from secondary injuries and increase your chances of survival.
Seat Belt Types
Description and structure

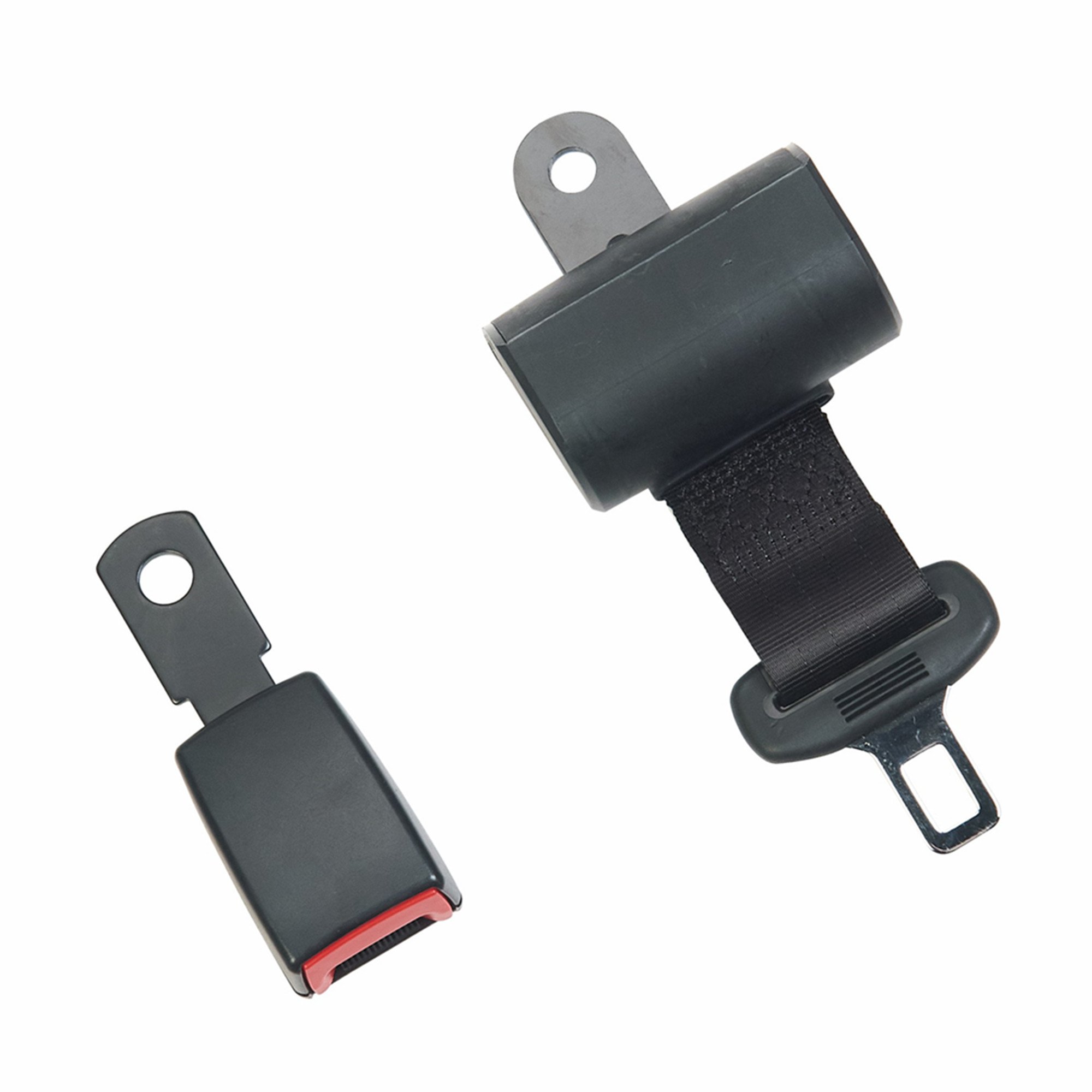

A 2-point seat belt, also known as a lap seat belt, has two anchor points and distributes the force to the pelvic bones. It is a basic restraint with low cost, simple, and easy to use.
Applications
A 2-point seat belt is used in low-speed environments. Normally, universal 2-point seat belts are used in buses, airplanes, amusement park rides, and rear middle seats. And the 2-point retractable seat belts are typically used in forklifts and golf carts.
Description and structure

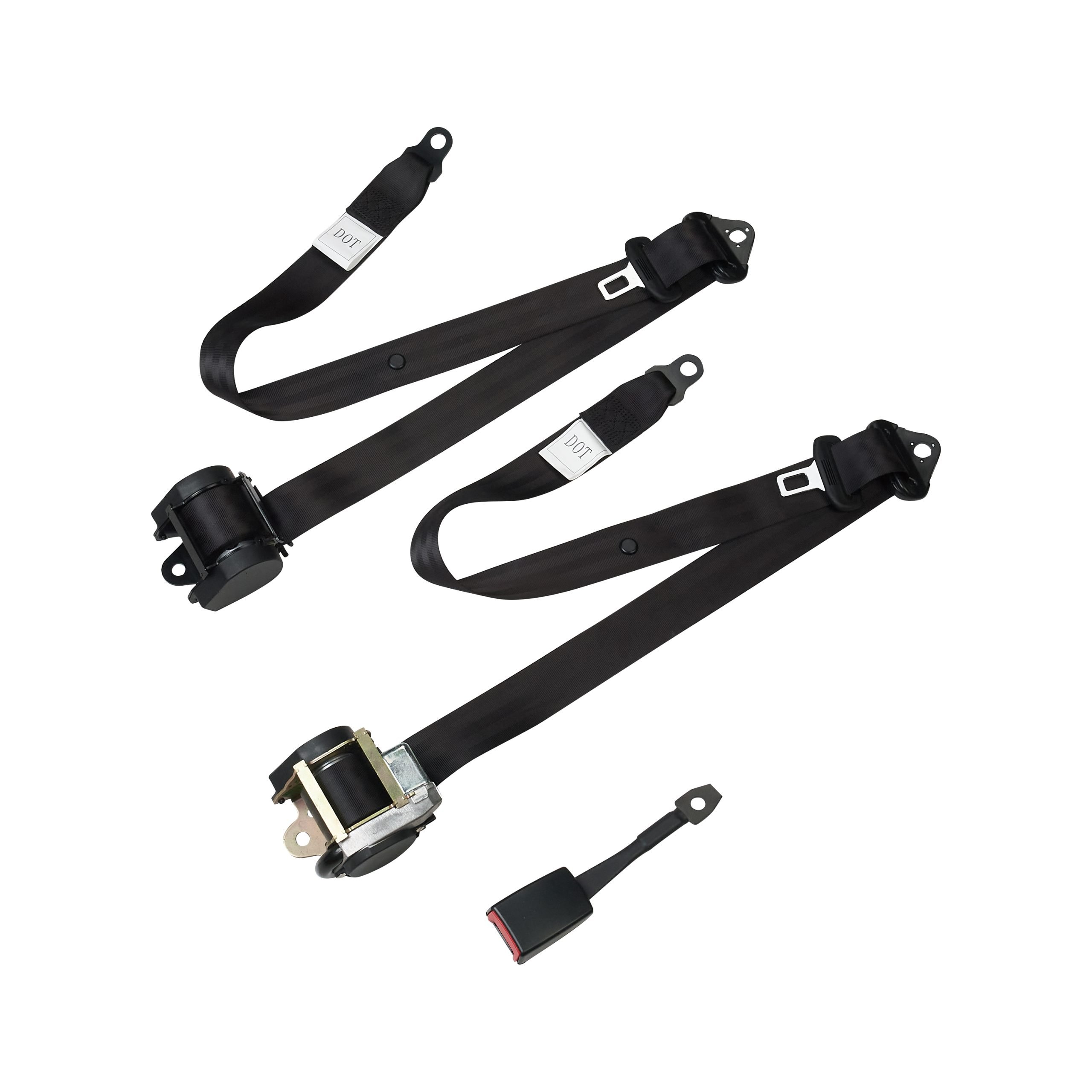

The Y-shaped 3-point seat belt has one lap strap, one shoulder strap, and three anchor points. It distributes force across the torso and pelvis. It can provide comprehensive protection to reduce the risk of injury.
Applications
The 3-point seat belt is the most popular type. It is applied to most vehicles, including cars, SUVs, karts, and trucks, for the driver (LV), co-driver (RV), left rear (LA), and right rear (RA) seats. It’s ideal for most daily passenger use.
Description and structure

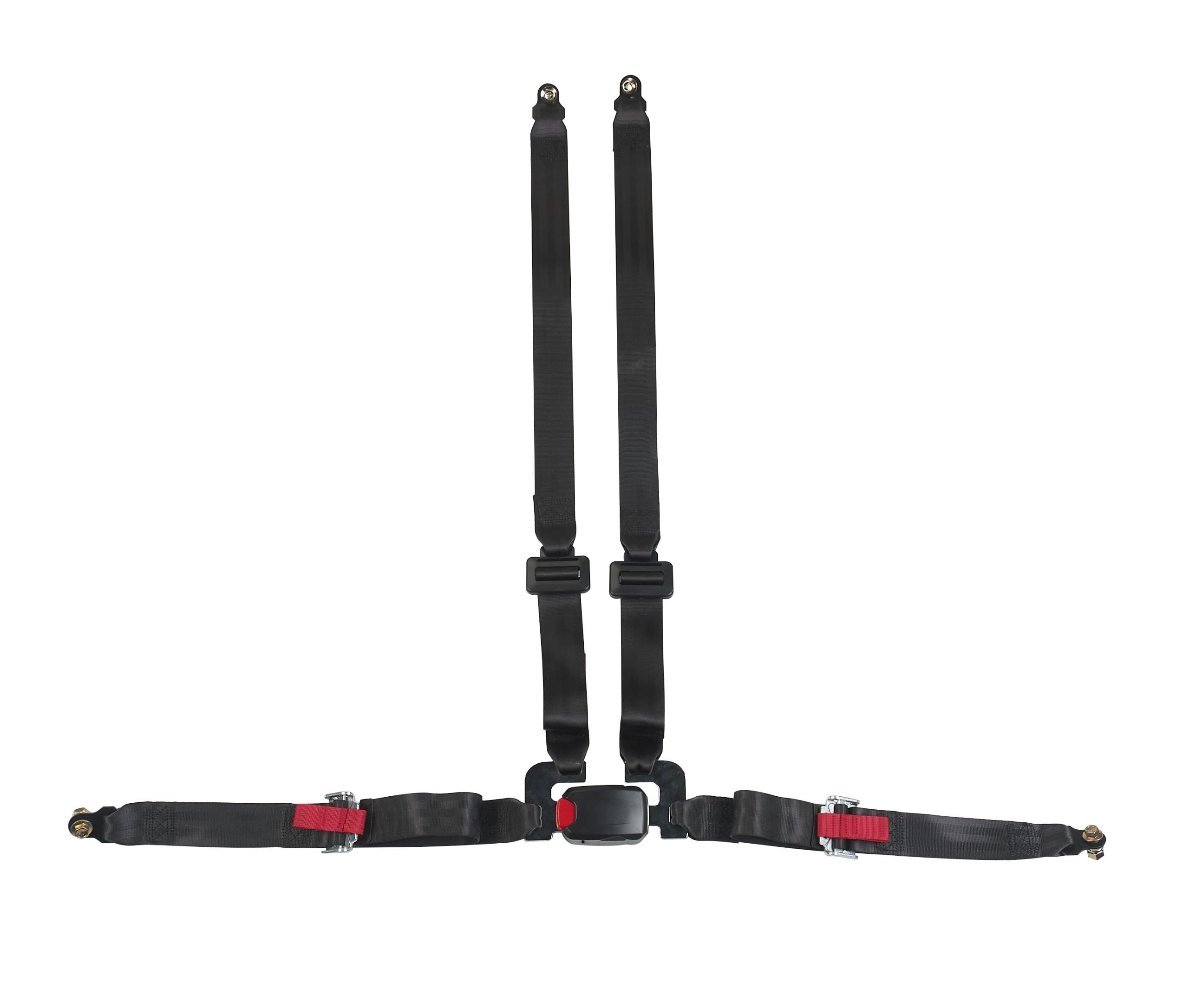

A 4-point seat belt consists of two shoulder straps and two lap straps, with a crisscross or parallel shoulder layout secured by four anchor points. It distributes force more evenly and provides greater upper-body stability.
Applications
You can see 4-point seat belts in racing vehicles, off-road vehicles, and go-karts.
Description and structure

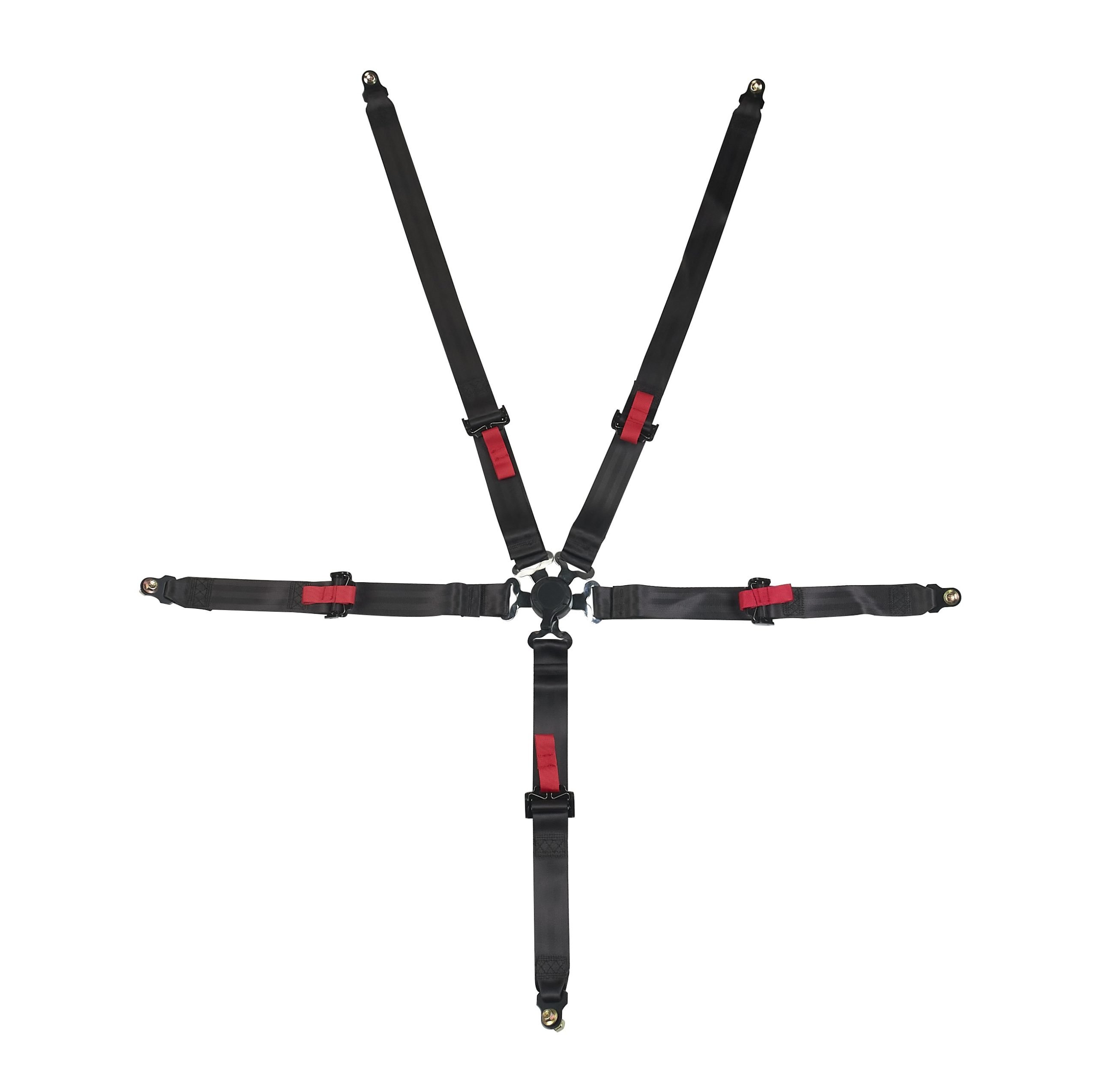

A 5-point seat belt has two shoulder straps, two lap straps, and one crotch strap and is secured by five anchor points. It is a full-body harness with a centered buckle. This design prevents submarining (sliding under the belt) and provides maximum restraint coverage.
Applications
You will find 5-point seat belts in racing vehicles and recreational motorsport vehicles.
Conclusion
Encourage readers to wear seat belts properly
The seat belt is a lifeline. You should always wear your seat belt properly. Different types of seat belts are designed for different vehicles. Choosing the right seat belt can provide you with better protection in a collision. Please fasten your seat belt whenever you get into a vehicle.
Check your seat belt system for safety and maintenance
To ensure your seat belt system remains safe, you should inspect your seat belt webbing and buckles regularly. Make sure that the retractor and locking mechanisms function smoothly, and avoid chemical exposure to the webbing. Please replace any damaged or worn seat belts immediately after a crash.
From this complete guide, you must have understood the differences between two-point to five-point seat belts, their structures, and applications. It’s crucial to wear them correctly and check this “life belt” regularly.
